Angular Grippers
LantecLT provides you with 4 different series with their different sizes in angular movement pneumatic grippers. With mechanical locking system, large opening, reduced size, etc.
Our range of angular grippers can cover your needs for manoeuvring and mooring.
Remember that we can manufacture your special gripper if you need a more specific solution.
Gripper with angular opening and a single axis of rotation that allows us to manoeuvre parts of various diameters without having to change the jaws and at the same time, maintaining the position of the workpiece being handled. Equipped with commercial cylinders of diameters from ø32 to Ø80.
Standard commercial cylinder with different options, types S (SMC) and J (Numatics).
- Force of 3.6 to 66Nm
- Opening of 124° to 138.5°

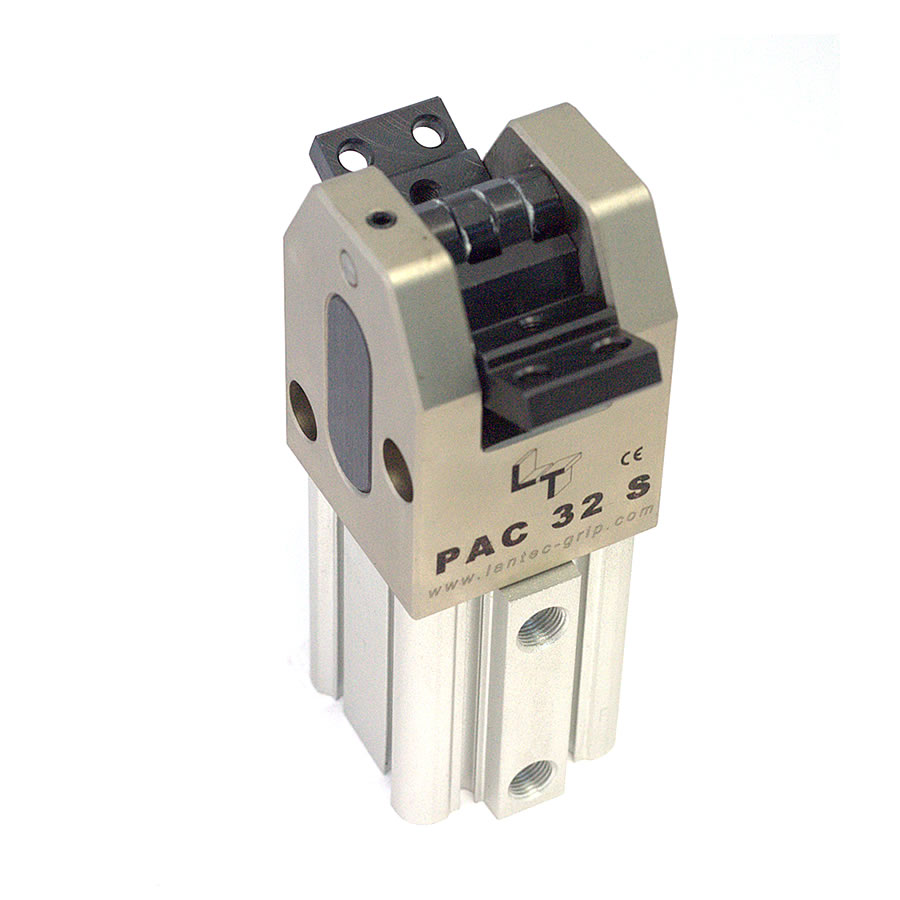

PAC Series
Angle gripper with large progressive tightening force which reaches irreversibility. Excellent force/size ratio.
Equipped with commercial cylinders of diameters from 25 to 63mm.
Standard commercial cylinder with different options, types S (SMC) and J (Numatics).
- Force of 24 to 300Nm
- Opening of 27° to 39°
PAE Series
Compact design angle gripper for handling small-sized parts, with integrated cylinder, has a range of sizes from Ø10 to Ø25.
- 0.42 to 2,2Nm force
- Opening of 29° to 33°
PAP Series
Angular gripper of reduced size and with great mechanical robustness. Single axis rotation system designed for handling parts of different diameters without hardly any variation.
Equipped with commercial cylinders with measurements of Ø50 to Ø63.
Standard commercial cylinder with different options, types S (SMC) and J (Numatics).
- Force of 17.5 to 34Nm
- Opening from 30° to 37°
